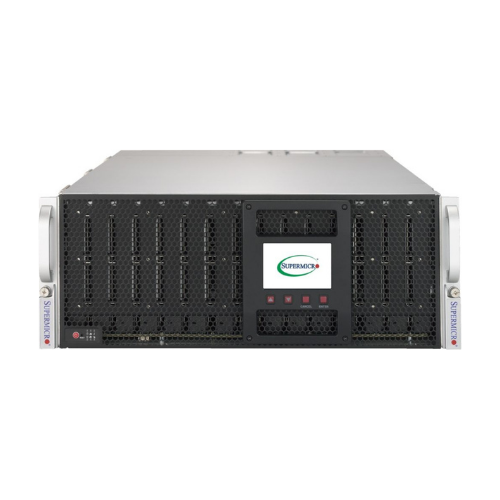

SuperStorage 6049P-E1CR60L/H(+)

$980.00

Key Features

Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking) Note: must bundle with Network card

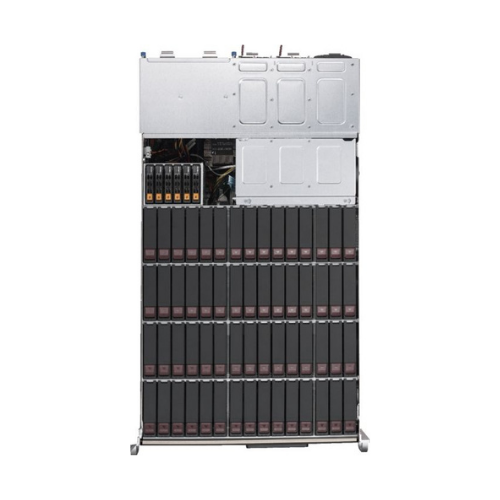

60 Hot-swap 3.5″ SAS3/SATA3 drive bays with SES3; 2 rear Hot-swap 2.5″ drive bays
Broadcom 3108 SAS3, HW RAID
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

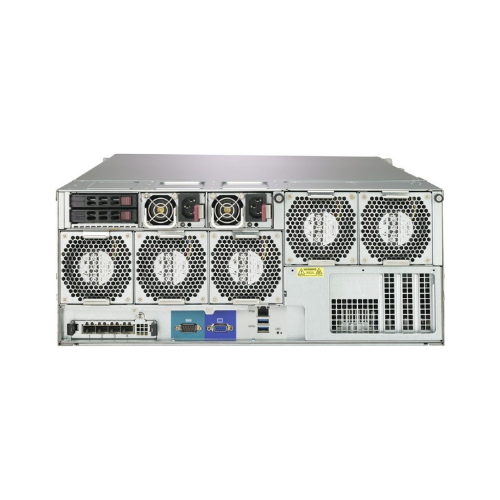

5 Hot-swap 8cm rear exhaust PWM fans
2000W Redundant Power Supplies Titanium Level (96%)

Delivery

Clear

SKU: 6049P-E1CR60L Category: Servers

Description


Processor/Cache

CPU	Dual Socket P (LGA 3647) 2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake)^‡,3 UPI up to 10.4GT/s Support CPU TDP 70-205W
Cores	Up to 28 Cores
Note	^‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors


System Memory

Memory Capacity	24 DIMM slots Up to 6TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM^††
Memory Type	2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	^† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro ^†† Cascade Lake only. Contact your Supermicro sales rep for more info.


On-Board Devices

Chipset	Intel® C621 chipset
SAS	SAS3 (12Gbps) via Broadcom 3108; HW RAID RAID 0, 1, 5, 6, 10, 50, 60
SATA	SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC


Management

Software	Intel® Node Manager IPMI 2.0 NMI SSM, SPM, SUM SuperDoctor® 5 Watchdog


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors


Dimensions

Width	17.2″ (437mm)
Height	7″ (178mm)
Depth	30.2″ (767mm)
Weight	Gross Weight: 170.5 lbs (77.3kg) Net Weight: 118 lbs (53.5 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button System Reset button
LEDs	Power status LED Hard drive activity LED Network activity LEDs System Information LED Power fail LED


Expansion Slots

PCI-Express	2 PCI-E 3.0 x16 slots 1 PCI-E 3.0 x8 slot 1 SIOM card support(must bundle with network card)


Drive Bays

Hot-swap	60 Hot-swap 3.5″ SAS3/SATA3 drive bays 2 Rear Hot-swap 2.5″ SATA drive bays


Backplane

SAS3/SATA3 single expander per backplane


System Cooling

Fans	5 Hot-swap 8cm rear exhaust PWM fans


Power Supply
2000W Redundant Power Supplies with PMBus
Total Output Power	1000W: 100 – 120Vac 1800W: 200 – 220Vac 1980W: 220 – 230Vac 2000W: 230 – 240Vac 2000W: 200 – 240Vac (UL/CUL only)
Dimension (W x H x L)	73.5 x 40 x 265 mm
Input	100-120Vac / 12.5-9.5A / 50-60Hz 200-220Vac / 10-9.5A / 50-60Hz 220-230Vac / 10-9.8A / 50-60Hz 230-240Vac / 10-9.8A / 50-60Hz 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V	Max: 83.3A / Min: 0A (100-120Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 166.7A / Min: 0A (230-240Vac) Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]


Operating Environment

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature:10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature:-40°C to 60°C (-40°F to 140°F) Operating Relative Humidity:8% to 90% (non-condensing) Non-operating Relative Humidity:5% to 95% (non-condensing)
