Description
Product SKUs

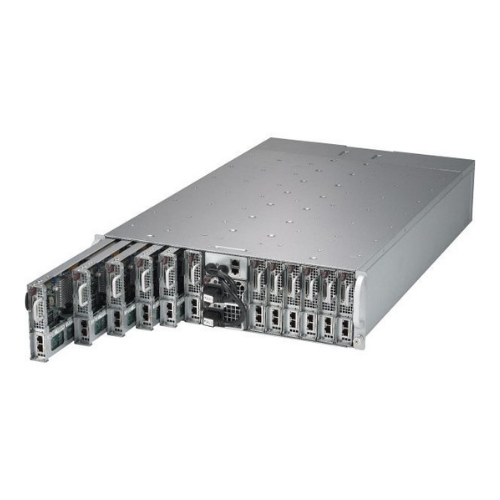

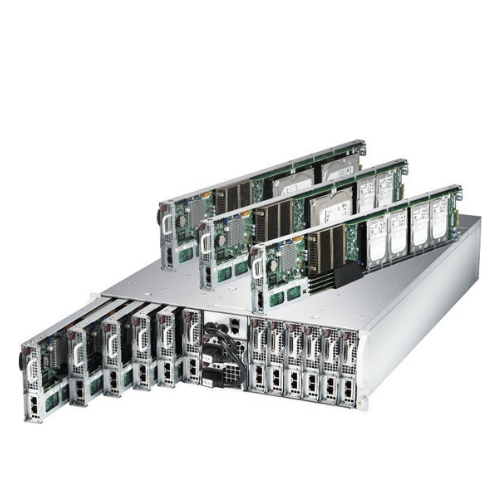

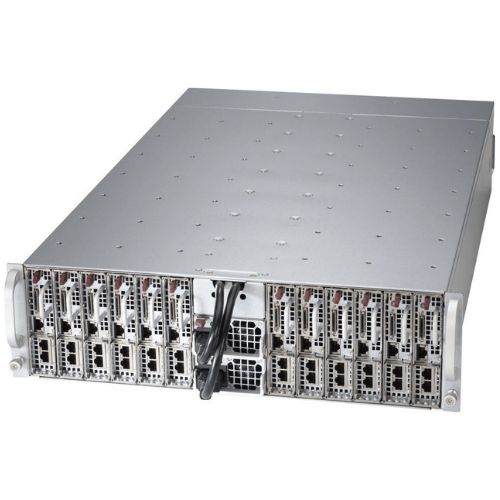

SuperServer
- SYS-5039MS-H12TRF(Black)
Motherboard
Super X11SSE-F
Processor / Cache
CPU
- Single Socket H4 (LGA 1151) supports:
- Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors
- CPU TDP up to 80W
Note
- BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors
System Memory (per Node)
Memory Capacity
- 4x 288-pin DDR4 DIMM slots
- Supports up to 64 GB DDR4 VLP ECC Un-Buffered memory (UDIMM)
Memory Type
- 2400MHz/2133MHz ECC DDR4 (VLP) SDRAM 72-bit, 288-pin gold-plated UDIMMs
DIMM Sizes
- 16GB
Memory Voltage
- 1.2 V
Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices (per Node)
Chipset
- Intel® C236 chipset
SATA
- SATA3 (6Gbps) via C236 controller
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Headers
- 1 Type A USB 3.0
Graphics
- ASPEED AST2400 Graphics (BMC with Graphic controller)
Network Devices (per Node)
Micro-LP NIC
- Intel® i350 GbE controller
- Dual RJ-45 connectors
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Intel® I/O Acceleration Technology (I/O AT)
- MicroLP Adapter Matrix (Networking options)
Input / Output
SATA
- 2 SATA3 (6Gbps) ports
LAN
- 2 RJ45 Gigabit Ethernet LAN ports
DOM
- SATA DOM (Disk on Module) power connector support
KVM
- 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle)
System BIOS
BIOS Type
- 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
- DMI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
Front Window (each node)
Switch
- Power / UID
Chassis
Form Factor
- 3U
Model
- CSE-939HS-R2K04B
Dimensions and Weight
Height
- 5.21″ (132.5 mm)
width
- 17.5″ (444.5 mm)
Depth
- 29.5″ (749.3 mm)
Package
- 16.1″ (H) x 28.35″ (W) x 42.36″ (D)
Weight
- Net Weight: 95lbs (43.09kg)
- Net Weight w/ 2.5″ HDDs: 115lbs (52.16kg)
- Net Weight w/ 3.5″ HDDs: 132lbs (59.87kg)
- Gross Weight: 125lbs (56.70kg)
Color
- Black
Drive Bays (per Node)
Internal
- 2x 3.5″ SATA3 OR 4x 2.5″ SATA3 HDDs OR 2x 2.5″ NVMe + 1x 3.5″ SATA3 OR 2x 2.5″ NVMe + 2x 2.5″ SATA3; up to 48x 2.5″ drives total
- Enterprise SATA HDD only recommended

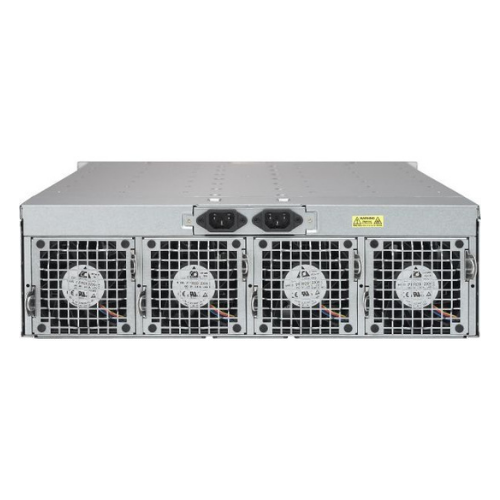

System Cooling
Fans
- 4 Heavy duty 9cm fans with optimal cooling zone
Power Supply (76mm Width)
2000W Titanium Redundant Power Supplies with PMBus and Reverse Airflow
Total Output Power
- 1000W/1800W/1980W/2000W1000W/1800W/1980W/2000W
+Dimension (W x H x L)
- 76 x 40 x 336 mm
Input
- 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz
- 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
- 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
- 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
- 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
+12V
- Max: 83.3A / Min: 0A (100Vac-127Vac)
- Max: 150A / Min: 0A (200Vac-220Vac)
- Max: 165A / Min: 0A (220Vac-230Vac)
- Max: 166.7A / Min: 0A (230Vac-240Vac)
- Max: 166.7A / Min: 0A (200-240 Vac) (UL/cUL only)
+5Vsb
- Max: 1A / Min: 0A
Output Type
- 27 Pairs Gold Finger Connector
Certification
Titanium Level
PC Health Monitoring
CPU
- Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
- 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
- Cooling zone
Temperature
- Monitoring for CPU and chassis environment
Operating Enviroment / Compliance
RoHS
- RoHS Compliant
Enviromental Spec.
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
