Description
Product SKUs
SYS-5038MD-H8TRF

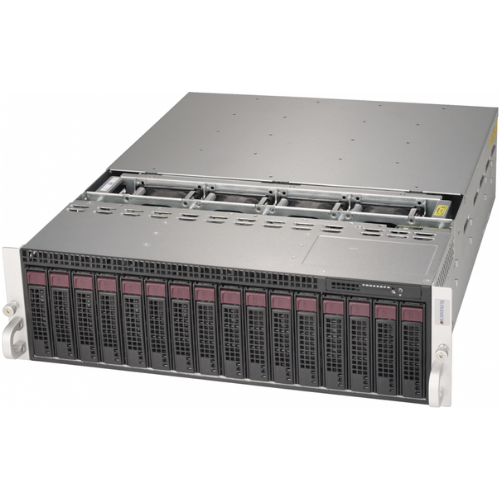

- SuperServer 5038MD-H8TRF (Black)
Motherboard
MBD-X10SDD-F
Processor / Cache
CPU
- Intel® Xeon® processor D-1541
- Socket FCBGA 1667
- CPU TDP support 45W, 12MB, 8 Cores, 16 Threads, 2.1-2.7GHz
System Memory (per node)
Memory Capacity
- 4x 288-pin DDR4 DIMM slots
- Supports up to 128 GB DDR4 ECC RDIMM
- Supports up to 64 GB DDR4 ECC UDIMM
Memory Type
- 2133/1866/1600MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes
- 32GB, 16GB, 8GB, 4GB
Memory Voltage
- 1.2 V
Error Detection
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices (per node)
Chipset
- System on Chip (SoC)
SATA
- SATA3 (6Gbps) via SoC
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Headers
- 1x Type A USB 3.0
Graphics
- ASPEED AST2400 BMC
Input / Output (per node)
SATA
- 2x SATA3 (6Gbps) ports
LAN
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
KVM
- 1x VGA, 1x COM and 2x USB 2.0 (with KVM dongle)
System BIOS
BIOS Type
- 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
- DMI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
Rear Window (each node)
Switch
- Power / UID
PC Health Monitoring
CPU
- Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
- 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
- Cooling zone
Temperature
- Monitoring for CPU and chassis environment
Chassis
Form Factor
- 3U
Model
- CSE-938BH-R1K68B
Dimensions and Weight
Height
- 5.21″ (132 mm)
Width
- 17.26″ (438 mm)
Depth
- 23.2″ (589 mm)
Package
- 11.65″ (H) x 26.26″ (W) x 34″ (D)
Weight
- Net Weight: 62.2 lbs (28.21 kg)
- Gross Weight: 88 lbs (39.92 kg)
Available Colour
- Black
Front Panel
Buttons
- Power On / Off button
LEDs
- Power LED
- Node status LED
Expansion Slots (per node)
PCI-Express
- 1x PCI-E 3.0 x8 Low-profile slot
- 1x Micro-LP for Dual GbE (pre-installed); 10GbE or IB AOC optional
- 4x M.2 (2x PCI-E 3.0 x4 + 1x PCI-E 2.0 x4 + 1x PCI-E 2.0 x2)
Drive Bays (per node)
Internet
- 2x 3.5″ Hot-swap SATA3 (6Gbps) HDDs per node (or 2x 2.5″ SATA3 with optional kits); up to 16 HDDs total
- Enterprise SATA HDD only recommended
System Cooling
Fans
- 4x 8cm Heavy duty fans with optimal cooling zone
Power Supply (76mm Width)
1600W 1U Redundant Power Supplies with PMBus
Total Output Power
- 800W/1600W
Dimension (W x H x L)
- 76 x 40.4 x 336 mm
Input
- 100-140Vac / 10-7A / 50-60Hz
- 180-240Vac / 11-8A / 50-60Hz
+12V
- Max: 67A / Min: 0A (100-140Vac)
- Max: 133A / Min: 0A (180-240Vac)
+5Vsb
- Max: 1A / Min: 0A
+Output Type
- 27 Pairs Gold Finger Connector
Certification
Titanium Level
Operating Enviroment / Compliance
RoHS
- RoHS Compliant
Enviromental Spec.
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
